Detalhes do produto:
|
|
| Lugar de origem: | CHINA |
|---|---|
| Marca: | Hanrui |
| Certificação: | CE |
| Número do modelo: | HFT15AP |
|
Condições de Pagamento e Envio:
|
|
| Quantidade de ordem mínima: | 1 grupo |
| Preço: | 5000-60000USD |
| Detalhes da embalagem: | madeira compensada |
| Tempo de entrega: | 6-8 semanas |
| Termos de pagamento: | T/T, Western Union |
| Habilidade da fonte: | 1000 grupos/ano |
|
Informação detalhada |
|||
| Eficiência do filtro: | 99,99% | Temperatura de trabalho: | menos ℃ de 204 |
|---|---|---|---|
| Resistência da falha: | ³ de 25kg/m | Outro: | alcaloide do acid& da resistência |
| Material: | SS304, SS316, SS316L, Q235 | Resistência do equipamento: | ≤1200Pa |
| Destacar: | SS304 dust collection equipment,4000m3/h Industrial Dust Collector,60m2 Industrial Dust Collector |
||
Descrição de produto

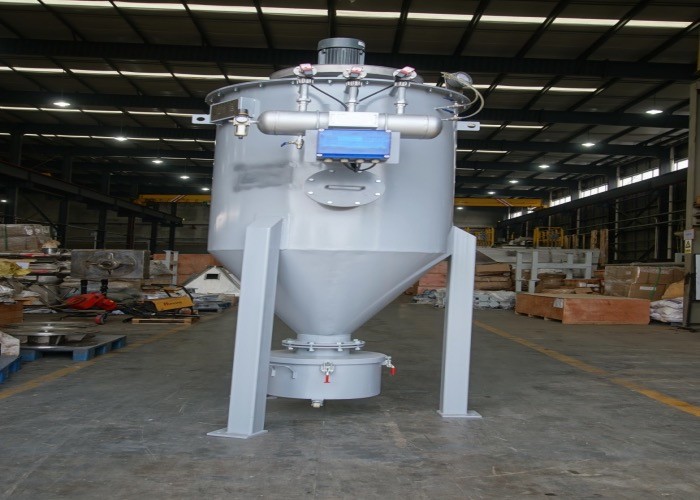

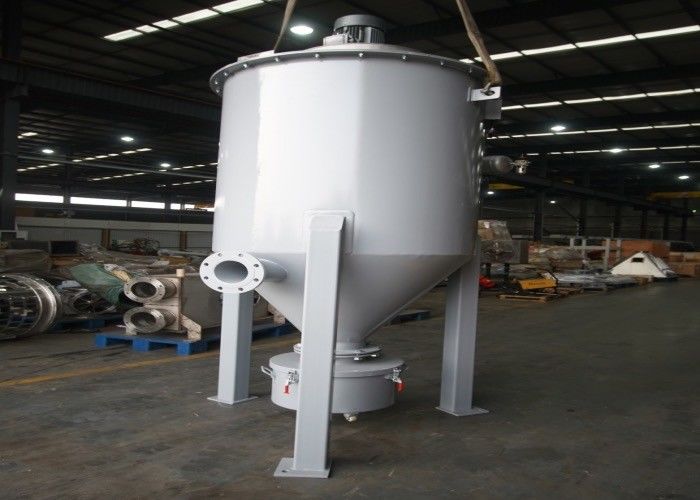

industrial dust collector with different pressure transmitter
Product description
Dust collector is designed to seperate superfine particle or even sub-micron dust from process gas with micropore fiber material. It is widely applied to chemical industries, food,medicine, electric power, metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use. It can be also divided into bag filter and cartridge filter according to structure.Filter material is made of fiber, common felt, felt with Tex, polyester, Nomex, polymer cloth, Teflon, terylene, Plypropylene...
Technical parameters
| Model Parameters | HFD-32 | HFD-48 | HFD-64 | HFD-80 | HFD-96 | HFD-112 |
| Air Volume(m3·h) | 1500-2100 | 2100-3200 | 2900-4300 | 4000-6000 | 5200-7000 | 6000-9000 |
| Filter Area(m2) | 24 | 36 | 48 | 60 | 72 | 84 |
| Filter Wind Speed(m/min) | 1.0—1.5 | 1.0—1.5 | 1.0—1.5 | 1.1—1.7 | 1.2—1.7 | 1.2—1.8 |
| Material | can be selected | can be selected | can be selected | can be selected | can be selected | can be selected |
| Entrance Gas Temperature(℃) | ≤120 | |||||
| Equipment Resistance(Pa) | ≤1200 | |||||
| Soot Cleaning With Air Pressure(MPa) | 0.4~0.6 | |||||
| No.of Pulse Valve | 4 | 6 | 8 | 10 | 12 | 14 |
| Blower Motor Power(KW) | 1.5 | 3 | 3 | 5.5 | 5.5 | 7.5 |
Product advantages
1. High filter efficiency of bag dust collector
2. Integrated construction design and easy installation.
3. Bag collector has compacted structure to reduce the filter collector covering area and realize superfine dust filtration.
4. The bags are resistant to acid and alkali, to moisture, non-bond on filter surface.
5. Impulse back cleaning, mechanical shake cleaning and acoustic wave cleaning can be used in dust collector. The impulse back cleaning filter components: impulse controller, solenoid valve, nozzle, differential pressure meter, safeguard and sight glass etc.
Product application
Bag filter is widely used to chemical industries, food, medicine, electric power, metallurgy and concrete industry. Dust filter can be divided into pneumatic conveying filter and silo filter according to its use.
Hanrui Puzer is professional as one of the leading bag filter dust collector manufacturers and suppliers in China. Equipped with advanced equipment and experienced staff, we now have high quality products for sale. Should you have any interest in it, please feel free buy bag filter dust collector at best price with us. We will offer you the greatest after-sales service and fast delivery.
